Ferocactus et stupra

Ferocactus et cochleae fabrica EJS dolium et cochleam producebant ab 1990 pro clientibus nationalibus et internationalibus cum clientibus in extrusione, iniectione et ictu machinarum fingarum in materia plastica, rubber et ciborum industriarum utriusque finis utentis et OEMs.
Cochlea cor machinae est, iniectio machinae et extruder, quia facultatem suam plasticizing determinat.

Mitte Inquisitionem

depictio producti

Ferocactus et stupra:

45/2-￠250/2，67/22，68/25，114/32，92/28，92/32，114/32，90/16，90/22，CM80，40KK, 75/32, 81/17, CM58

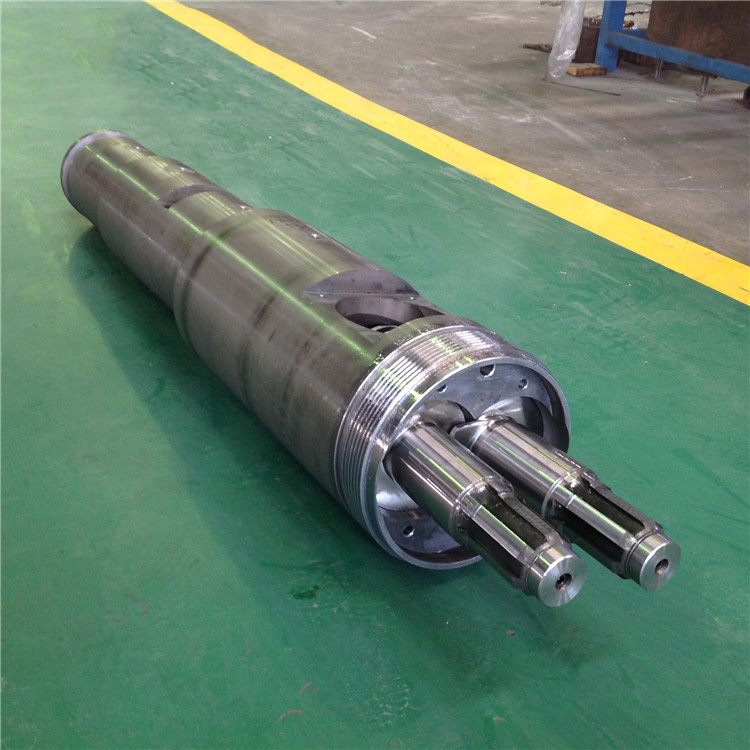

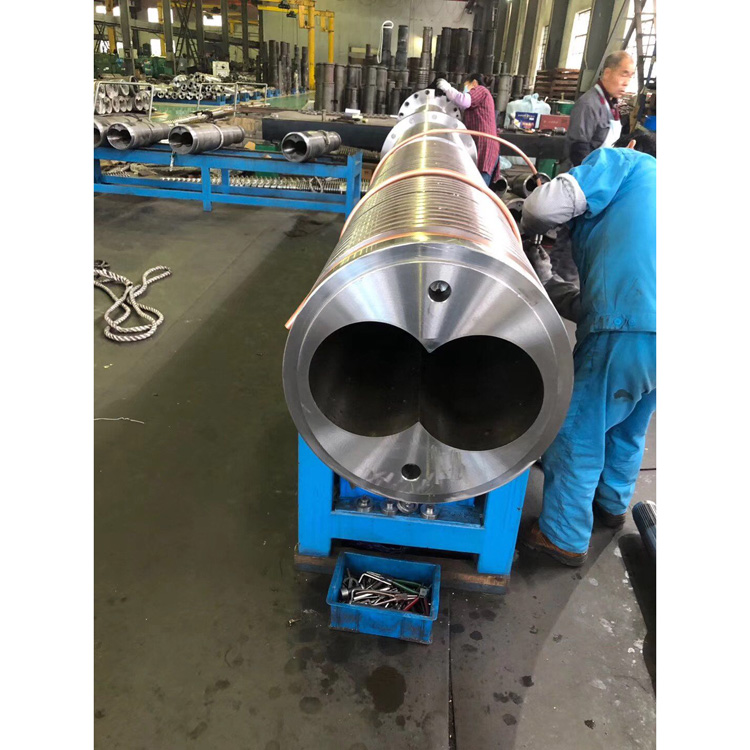

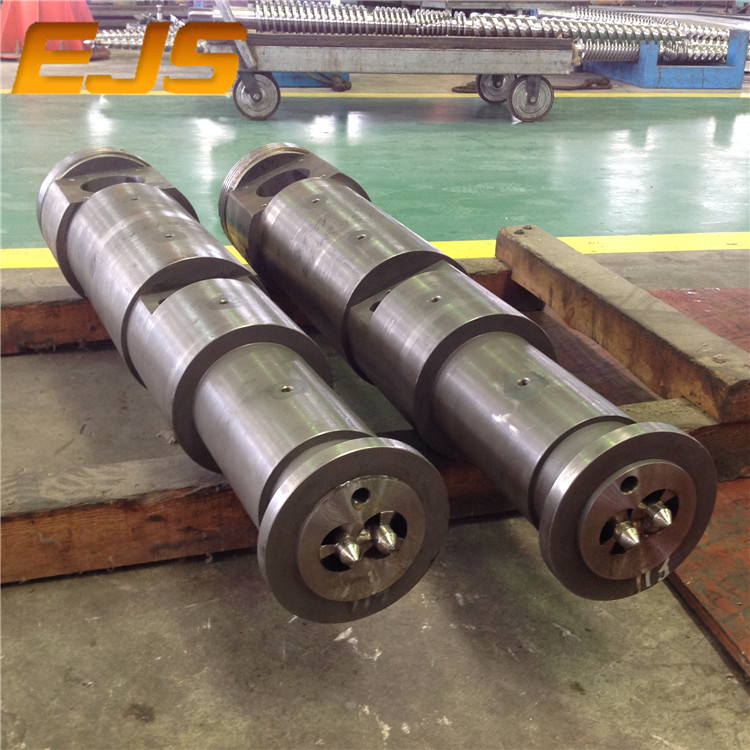

Cochleae dolii gemini conici;

24/52, 35/xx, 45/90, 45/100, 50/105, 51/105, 55/110, 55/120, 58/124, 60/125, 65/120, 65/132, 68/143, 68/147, 70/135, 70/140, 75/150, 80/143, 80/156, 92/188, 105/216, 110/220

Extruder unum dolium cochleae:

Ø15mm~Ø500mm

Purgamentum cochlea dolium

1. Cold cibarium cochleae iuvantis et dolium, Diameter: ￠25-￠300mm
2.Hot cibarium cochleae iuvantis et dolium, Diameter: ￠60-￠500mm
3.PIN style rubber cochleae et dolium, Diameter: ￠60-￠250mm

Iniectio coronam Ferocactus et stupra

Moles Iniectio (G)	Screw Diameter X Longitudo(mm)	Ferocactus Diameter X Longitudo (mm)	Moles Iniectio (G)	Screw Diameter X Longitudo(mm)	Ferocactus exterioris diametri (mm)
30-90	30x900	85x860	800-1250	75x1825	170x1725
60-125	35x910	85x860	1000-1500	80x2000	180x1805
100-150	38x935	￠95x900	1250-2000	85x2300	190x1900
125-160	40x980	95x910	2000-3000	90x2700	210x2000
125-300	￠42x1030	105x1880	2500-5000	100x2600	230x2405
250-400	￠45x1210	￠115x1165	3000-6000	110x2600	256x2590
300-500	50x1300	￠125x1260	4000-1000	￠120x2800	256x2800
450-600	￠55x1335	￠130x1320	6000-8000	￠130x3010	256x2970
500-700	￠56x1350	￠130x1350	8000-1000	￠145x3010	256x3200
500-700	￠60x1380	￠140x1350	10000-15000	160x3500	￠270x3200
650-800	￠65x1415	150x1420	13000-25000	￠ 170x3415	317x3380
700-1000	￠70x1790	￠160x1685

De E.J.S.

EJS Screw Barrels nomen notam nuper creatum est pro negotiis exportandis cum experientiis faciendis ab anno 1992 .
Cochleae dolium opificem dicatum in dolio cochleae nativus producendo et excogitationis extruder cochleae dolia, iniectio dolii corona cochleae.

Bimetallic Screw Barrels

Cochleam bimetallicam dolium facere incepimus in iuvenili aetate, eodem fere tempore quo primum dolium bimetallic in Sinis natum est. Nunc habemus varia genera optionum secundum diversa applicationes

Bimetallic Barrels
Admisce Type		EJS01 Alloy	EJS02 Alloy	EJS03 Alloy	EJS04 Alloy
Admisce Components		FE+Ni+CR+b (Feoda: 65, NI: 14, CR8, B: 3.5).	Ni + CC + CO + B	N + CR + CO + V + B	Ni+wc+b (N:50, WC: 15~35, Cr: 6~8, b: 2.5~3.2)
amictus resistentia		★★★	★★	★★★	★★★★
Corrosio Resistentia		★★	★★★	★★★	★★★
Alloy Crassitudo		2~3mm	1.5~2mm	1.5~2mm	1.5~2mm
duritia		HRC 58-65	HRC 50-58	HRC 55-60	HRC 55-65
Temperature Range		≤400	≤450	≤450	≤600
Coefficiens Scelerisque	RT~250℃	11.0x10-6	11.0x10-6	11.5x10-6	11.0x10-6
Expansio(/℃)	RT~400℃	11.4x10-6	11.4x10-6	12.4x10-6	12x10-6
Teli operabilis Longitudo		700mm~3000mm/piece
Basi Steel Vastly Used		40Cr: 42CrMo
Marce in indice: ★★★★ Optime; ★★★ Optime; -Bonum

Bimetallic Cochleas
Apta for	Single Screw, Didymus Parallel Screw, Didymus Conicus Screw
Admisce Type	Ni60	CoImonoy 56	CoImonoy 83
Admisce Components	Ni+Cr+Fe+Si (Ni:65, Chr: 17, fides: 15, Si: 5).	Ni+Cr+Si+Fe (Ni: 68, Chr: 18, SI: 5, fides 5).	Ni+Wc+Cr+C (Ni:40, Wc: 34, Cr: 20, C: 2).
Anti- gerens Level	★★★	★★★	★★★★
Anti-Corrosion Level	★★★★	★★★★	★★★★
Alloy Crassitudo	1~1.5mm	1~1.5mm	1~1.5mm
duritia	HRC 56-62	HRC 46~61	HRC 43-48
Acta Vitri Fibra	Sub X%
Teli operabilis Longitudo	Aliqua longitudo opus
Basi Steel Vastly Used	38CrMoAI (1.8509), 34CrAINi7 (1.8550), 31CrMoV9 (1.8519)
Marce in indice: ★★★★ Optime; ★★★ Optime; -Bonum

Qualitas Inspectionis

Qualitas est gravissima gressus in productione. Ad dolium quale cochleae faciendae, omnes patientiae implendae sunt omnesque dimensiones in monumentis rectae erunt et ponendae.

Relationem inspectionem praebemus, testimonium materiale pro singulis doliis cochleae nostrae suppeditatae.

Packaging

Packaging est ultimus sed magni momenti ante naviculas. Fortis et callidior arca est etiam pars qualitatis nostrae. Cochleas cupas in vectura bene tueri non solum est, sed etiam facilem rationem nostris ad explicandam emptorem praebet.
